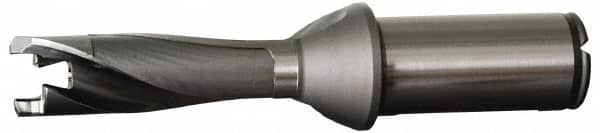

Kennametal - 9.5 to 9.99mm Diam, 8xD, 80mm Max Depth, 12mm Shank Diam, 93mm Flute, 144mm OAL, Replaceable Tip Drill - KTIP0950HPM Insert, I Seat Size, Series KenTIP
Item #: 48581235
Brand: Kennametal
Model #: 2548923
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 9.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.3740 |
| Maximum Drill Diameter (mm) | 9.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.3933 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 80.00 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Style | KTIP0950HPM |
| Insert Seat Size | I |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 1.60 |
| Flute Length (mm) | 93.00 |
| Body Length (mm) | 99.00 |
| Overall Length (mm) | 144.00 |
| Shank Length (mm) | 45.00 |
