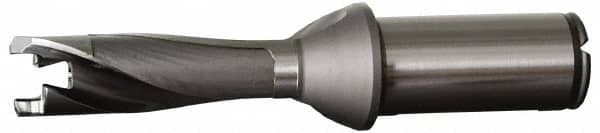

Kennametal - 16 to 16.99mm Diam, 8xD, 136mm Max Depth, 20mm Shank Diam, 157mm Flute, 213mm OAL, Replaceable Tip Drill - KTIP1600HPM Insert, U Seat Size, Series KenTIP
Item #: 48581359
Brand: Kennametal
Model #: 2548935
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 16.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (mm) | 16.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6689 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 136.00 |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Style | KTIP1600HPM |
| Insert Seat Size | U |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 2.80 |
| Flute Length (mm) | 157.00 |
| Body Length (mm) | 163.00 |
| Overall Length (mm) | 213.00 |
| Overall Length (Decimal Inch) | 8.3858 |
| Shank Length (mm) | 50.00 |
