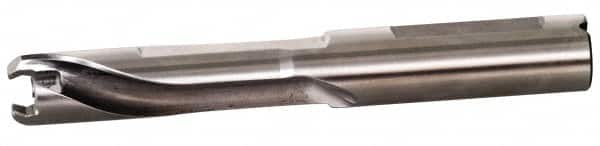

Kennametal - 9 to 9.5mm Diam, 3xD, 28.5mm Max Depth, 10mm Shank Diam, 45.1mm Flute, 91mm OAL, Replaceable Tip Drill - KTIP0900HPM Insert, H Seat Size, Series KenTIP
Item #: 48581490
Brand: Kennametal
Model #: 2888894
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 9.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.3543 |
| Maximum Drill Diameter (mm) | 9.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.3740 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 28.50 |
| Shank Diameter (mm) | 10.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Insert Style | KTIP0900HPM |
| Insert Seat Size | H |
| Through Coolant | NonThrough Coolant |
| Coolant Hole Diameter (mm) | 1.40 |
| Coolant Hole Diameter (Decimal Inch) | 0.0551 |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 1.60 |
| Flute Length (mm) | 45.10 |
| Flute Length (Decimal Inch) | 1.7756 |
| Overall Length (mm) | 91.00 |
