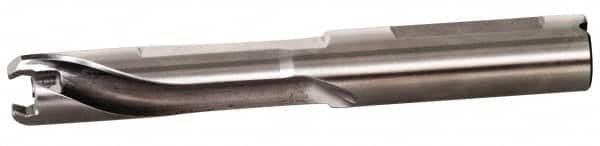

Kennametal - 10 to 10.5mm Diam, 3xD, 31.5mm Max Depth, 11mm Shank Diam, 49.4mm Flute, 94mm OAL, Replaceable Tip Drill - KTIP1000HPM Insert, J Seat Size, Series KenTIP
Item #: 48581524
Brand: Kennametal
Model #: 2888897
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 10.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.3937 |
| Maximum Drill Diameter (mm) | 10.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.4134 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 31.50 |
| Shank Diameter (mm) | 11.00 |
| Shank Diameter (Decimal Inch) | 0.4331 |
| Insert Style | KTIP1000HPM |
| Insert Seat Size | J |
| Through Coolant | NonThrough Coolant |
| Coolant Hole Diameter (mm) | 1.40 |
| Coolant Hole Diameter (Decimal Inch) | 0.0551 |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 1.70 |
| Flute Length (mm) | 49.40 |
| Flute Length (Decimal Inch) | 1.9449 |
| Overall Length (mm) | 94.00 |
