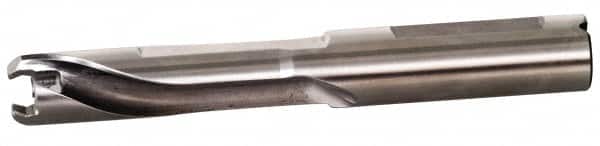

Kennametal - 10.5 to 11mm Diam, 3xD, 33mm Max Depth, 11mm Shank Diam, 51.5mm Flute, 94mm OAL, Replaceable Tip Drill - KTIP1050HPM Insert, K Seat Size, Series KenTIP
Item #: 48581532
Brand: Kennametal
Model #: 2888898
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 10.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4134 |
| Maximum Drill Diameter (mm) | 11.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.4331 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 33.00 |
| Shank Diameter (mm) | 11.00 |
| Shank Diameter (Decimal Inch) | 0.4331 |
| Insert Style | KTIP1050HPM |
| Insert Seat Size | K |
| Through Coolant | NonThrough Coolant |
| Coolant Hole Diameter (mm) | 1.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.0394 |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 1.80 |
| Flute Length (mm) | 51.50 |
| Flute Length (Decimal Inch) | 2.0276 |
| Overall Length (mm) | 94.00 |
