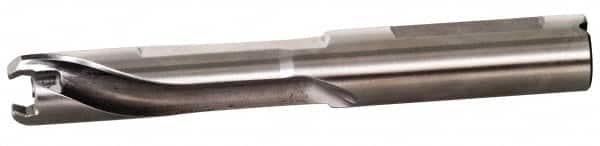

Kennametal - 11 to 11.5mm Diam, 3xD, 34.5mm Max Depth, 12mm Shank Diam, 53.6mm Flute, 106mm OAL, Replaceable Tip Drill - KTIP1100HPM Insert, L Seat Size, Series KenTIP
Item #: 48581557
Brand: Kennametal
Model #: 2888900
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 11.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.4331 |
| Maximum Drill Diameter (mm) | 11.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.4528 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 34.50 |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Insert Style | KTIP1100HPM |
| Insert Seat Size | L |
| Through Coolant | NonThrough Coolant |
| Coolant Hole Diameter (mm) | 1.60 |
| Coolant Hole Diameter (Decimal Inch) | 0.0630 |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 1.90 |
| Flute Length (mm) | 53.60 |
| Flute Length (Decimal Inch) | 2.1102 |
| Overall Length (mm) | 106.00 |
