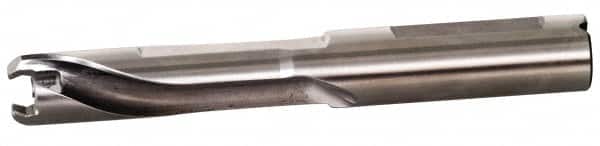

Kennametal - 12.5 to 13mm Diam, 3xD, 39mm Max Depth, 13mm Shank Diam, 59.9mm Flute, 110mm OAL, Replaceable Tip Drill - KTIP1250HPM Insert, O Seat Size, Series KenTIP
Item #: 48581599
Brand: Kennametal
Model #: 2888904
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 12.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.4921 |
| Maximum Drill Diameter (mm) | 13.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.5118 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 39.00 |
| Shank Diameter (mm) | 13.00 |
| Shank Diameter (Decimal Inch) | 0.5118 |
| Insert Style | KTIP1250HPM |
| Insert Seat Size | O |
| Through Coolant | NonThrough Coolant |
| Coolant Hole Diameter (mm) | 1.80 |
| Coolant Hole Diameter (Decimal Inch) | 0.0709 |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 2.20 |
| Flute Length (mm) | 59.90 |
| Flute Length (Decimal Inch) | 2.3583 |
| Overall Length (mm) | 110.00 |
