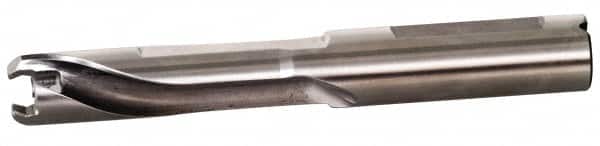

Kennametal - 13 to 13.5mm Diam, 3xD, 40.5mm Max Depth, 14mm Shank Diam, 62mm Flute, 111mm OAL, Replaceable Tip Drill - KTIP1300HPM Insert, P Seat Size, Series KenTIP
Item #: 48581615
Brand: Kennametal
Model #: 2888906
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 13.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5118 |
| Maximum Drill Diameter (mm) | 13.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.5315 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 40.50 |
| Shank Diameter (mm) | 14.00 |
| Shank Diameter (Decimal Inch) | 0.5512 |
| Insert Style | KTIP1300HPM |
| Insert Seat Size | P |
| Through Coolant | NonThrough Coolant |
| Coolant Hole Diameter (mm) | 1.80 |
| Coolant Hole Diameter (Decimal Inch) | 0.0709 |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 2.20 |
| Flute Length (mm) | 62.00 |
| Flute Length (Decimal Inch) | 2.4409 |
| Overall Length (mm) | 111.00 |
