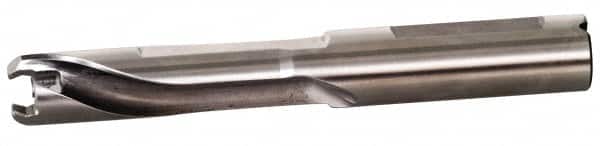

Kennametal - 14.5 to 15mm Diam, 3xD, 45mm Max Depth, 15mm Shank Diam, 68.2mm Flute, 118mm OAL, Replaceable Tip Drill - KTIP1450HPM Insert, S Seat Size, Series KenTIP
Item #: 48581656
Brand: Kennametal
Model #: 2888910
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 14.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.5709 |
| Maximum Drill Diameter (mm) | 15.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.5906 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 45.00 |
| Shank Diameter (mm) | 15.00 |
| Shank Diameter (Decimal Inch) | 0.5906 |
| Insert Style | KTIP1450HPM |
| Insert Seat Size | S |
| Through Coolant | NonThrough Coolant |
| Coolant Hole Diameter (mm) | 2.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.0787 |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 2.50 |
| Flute Length (mm) | 68.20 |
| Flute Length (Decimal Inch) | 2.6850 |
| Overall Length (mm) | 118.00 |
