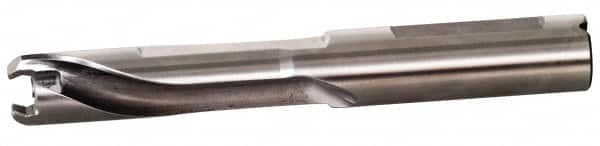

Kennametal - 15 to 15.99mm Diam, 3xD, 48mm Max Depth, 15mm Shank Diam, 72.4mm Flute, 121mm OAL, Replaceable Tip Drill - KTIP1500HPM Insert, T Seat Size, Series KenTIP
Item #: 48581664
Brand: Kennametal
Model #: 2888911
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 15.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Diameter (mm) | 15.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6295 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 48.00 |
| Shank Diameter (mm) | 15.00 |
| Shank Diameter (Decimal Inch) | 0.5906 |
| Insert Style | KTIP1500HPM |
| Insert Seat Size | T |
| Through Coolant | NonThrough Coolant |
| Coolant Hole Diameter (mm) | 2.20 |
| Coolant Hole Diameter (Decimal Inch) | 0.0866 |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 2.60 |
| Flute Length (mm) | 72.40 |
| Flute Length (Decimal Inch) | 2.8504 |
| Overall Length (mm) | 121.00 |
