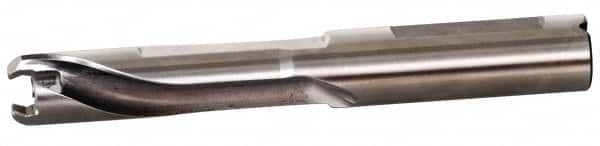

Kennametal - 12 to 12.5mm Diam, 4xD, 50mm Max Depth, 13mm Shank Diam, 70.3mm Flute, 121mm OAL, Replaceable Tip Drill - KTIP1200HPM Insert, N Seat Size, Series KenTIP
Item #: 48581706
Brand: Kennametal
Model #: 2889054
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 12.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
| Maximum Drill Diameter (mm) | 12.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.4921 |
| Drill Depth by Diameter Ratio | 4xD |
| Maximum Drill Depth (mm) | 50.00 |
| Shank Diameter (mm) | 13.00 |
| Shank Diameter (Decimal Inch) | 0.5118 |
| Insert Style | KTIP1200HPM |
| Insert Seat Size | N |
| Through Coolant | NonThrough Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 2.10 |
| Flute Length (mm) | 70.30 |
| Flute Length (Decimal Inch) | 2.7677 |
| Overall Length (mm) | 121.00 |
| Overall Length (Decimal Inch) | 4.7638 |
