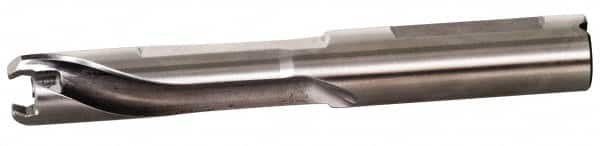

Kennametal - 14 to 14.5mm Diam, 4xD, 58mm Max Depth, 15mm Shank Diam, 80.7mm Flute, 133mm OAL, Replaceable Tip Drill - KTIP1400HPM Insert, R Seat Size, Series KenTIP
Item #: 48581748
Brand: Kennametal
Model #: 2889058
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 14.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5512 |
| Maximum Drill Diameter (mm) | 14.50 |
| Maximum Drill Diameter (Decimal Inch) | 0.5709 |
| Drill Depth by Diameter Ratio | 4xD |
| Maximum Drill Depth (mm) | 58.00 |
| Shank Diameter (mm) | 15.00 |
| Shank Diameter (Decimal Inch) | 0.5906 |
| Insert Style | KTIP1400HPM |
| Insert Seat Size | R |
| Through Coolant | NonThrough Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 2.40 |
| Flute Length (mm) | 80.70 |
| Flute Length (Decimal Inch) | 3.1772 |
| Overall Length (mm) | 133.00 |
| Overall Length (Decimal Inch) | 5.2362 |
