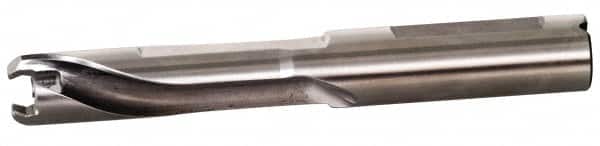

Kennametal - 16 to 17mm Diam, 4xD, 68mm Max Depth, 17mm Shank Diam, 93.5mm Flute, 141mm OAL, Replaceable Tip Drill - KTIP1600HPM Insert, U Seat Size, Series KenTIP
Item #: 48581771
Brand: Kennametal
Model #: 2889061
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 16.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (mm) | 17.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.6693 |
| Drill Depth by Diameter Ratio | 4xD |
| Maximum Drill Depth (mm) | 68.00 |
| Shank Diameter (mm) | 17.00 |
| Shank Diameter (Decimal Inch) | 0.6693 |
| Insert Style | KTIP1600HPM |
| Insert Seat Size | U |
| Through Coolant | NonThrough Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 2.80 |
| Flute Length (mm) | 93.50 |
| Flute Length (Decimal Inch) | 3.6811 |
| Overall Length (mm) | 141.00 |
