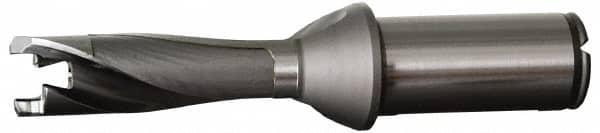

Kennametal - 19 to 19.99mm Diam, 3xD, 60mm Max Depth, 63/64" Shank Diam, 83mm Flute, 144mm OAL, Replaceable Tip Drill - KTIP1900HPM Insert, X Seat Size, Series KenTIP
Item #: 48581995
Brand: Kennametal
Model #: 3017669
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | KenTIP |
| Minimum Drill Diameter (mm) | 19.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Diameter (mm) | 19.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7870 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 60.00 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Inch) | 63/64 |
| Shank Diameter (Decimal Inch) | 0.9844 |
| Insert Style | KTIP1900HPM |
| Insert Seat Size | X |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Tip Length (mm) | 3.30 |
| Flute Length (mm) | 83.00 |
| Flute Length (Decimal Inch) | 3.2677 |
| Body Length (mm) | 89.00 |
| Overall Length (mm) | 144.00 |
| Overall Length (Decimal Inch) | 5.6693 |
| Shank Length (mm) | 56.00 |
