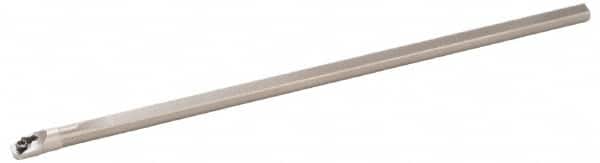

Kennametal - 6.8mm Min Bore Diam, 150mm OAL, 6mm Shank Diam, E-SWUP Indexable Boring Bar - WP.. Insert, Screw Holding Method
Item #: 48594675
Brand: Kennametal
Model #: 1930549
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-SWUP |
| Series | Screw-On |
| Minimum Bore Diameter (mm) | 6.80 |
| Minimum Bore Diameter (Decimal Inch) | 0.2677 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Insert Compatibility | WP.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | 3 |
| Center to Cutting Edge (mm) | 3.40 |
| Insert Thickness (Inch) | 1/16 |
| Insert Inscribed Circle (Inch) | 3/16 |
| Rake Angle | 0 |
| Coolant Hole Diameter (mm) | 1.20 |
| Complete Insert Compatibility | WP.S 30102 |
| Toolholder Material | Carbide |
