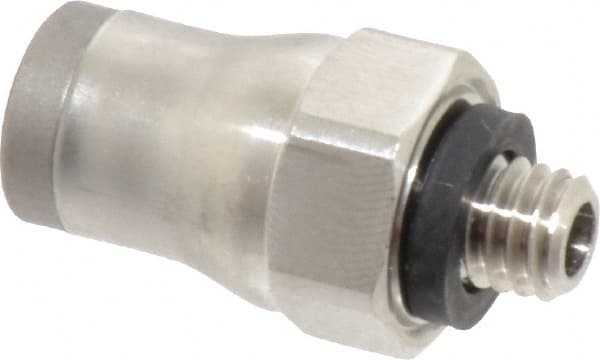

Legris - 5/32" Outside Diam, 10-32 UNF Stainless Steel Push-to-Connect Male Connector - 435 Max psi, FKM O-Ring, Tube to Male UNF
Item #: 48615033
Brand: Legris
Model #: 3801 04 20
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Male Connector |
| Tube Outside Diameter (Inch) | 5/32 |
| Maximum Working Pressure | 435 |
| Connection Style | Tube to Male |
| Connection Type | Tube to Male UNF |
| Material | Stainless Steel |
| Thread Size | 10-32 |
| Thread Type | UNF |
| O-Ring Material | FKM |
| Minimum Work Temperature (F) | -4 |
| Maximum Work Temperature (F) | 248 |
| PSC Code | 4720 |
