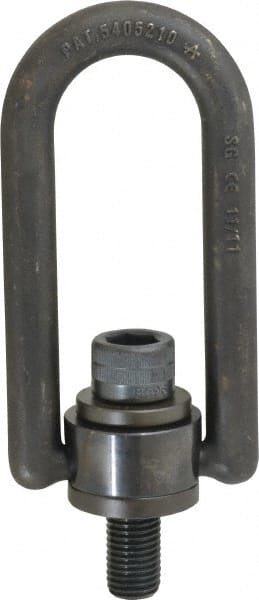

American Drill Bushing - 2,200 kgs. Load Capacity, 88.9 mm Wide x 174.6 mm High x 98.4 mm Opening, Extra Duty Center Pull Hoist Ring
Item #: 48716187
Brand: American Drill Bushing
Model #: 34717
Product Specifications
| Type | Center Pull Hoist Ring |
| Load Capacity (kg) | 2200 |
| Thread Size | M20 x 2.5 |
| Ring Height (mm) | 174.60 |
| Ring Width (Decimal Inch) | 88.900 |
| Ring Width (Inch) | 88.900 |
| Ring Width (mm) | 88.90 |
| Ring Opening (Decimal Inch) | 98.40 |
| Ring Opening (mm) | 98.40 |
| Ring Opening (Inch) | 98.40 |
| Bail Diameter (mm) | 19.10 |
| Thread Torque | 135.0 |
| Thread Length | 38.00 |
| Thread Length (mm) | 25.00 |
| Radius (mm) | 25.40 |
| Mounting Surface Diameter (Decimal Inch) | 48.00 |
| Pin Length (Decimal Inch) | 19.10 |
| Torque Newton/Meters | 135.00 |
| Flange Diameter (Decimal Inch) | 1.89 |
