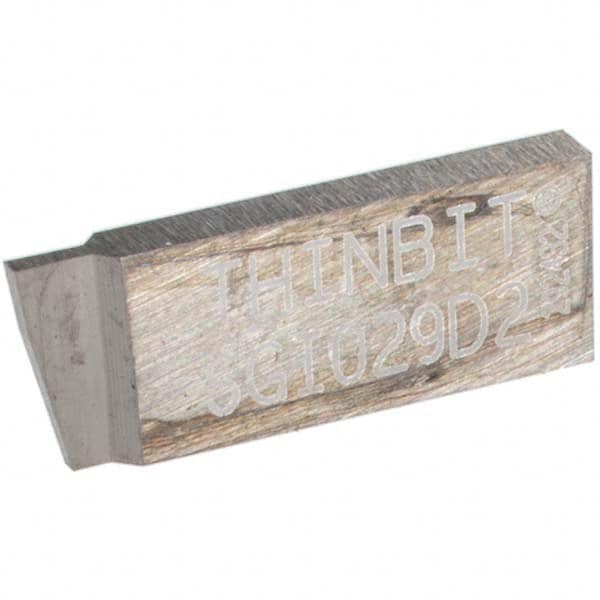

Thin Bit - DM2.029W Carbide Grooving Insert
Item #: 48747117
Brand: Thin Bit
Model #: SGI029D2
Product Specifications
| Insert Style | SGI |
| Insert Size | 029 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.0290 |
| Maximum Depth of Cut (Decimal Inch) | 0.0870 |
| Material Grade | C4/C5 |
| Manufacturer's Grade | Dura-Max 2000 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.2400 |
| Lead Angle | 0 |
| Multi-Use Tool | No |
| Overall Length (Decimal Inch) | 0.6500 |
| Rake Angle | 0 |
| Rake | Neutral |
| Overall Width (Decimal Inch) | 0.0680 |
