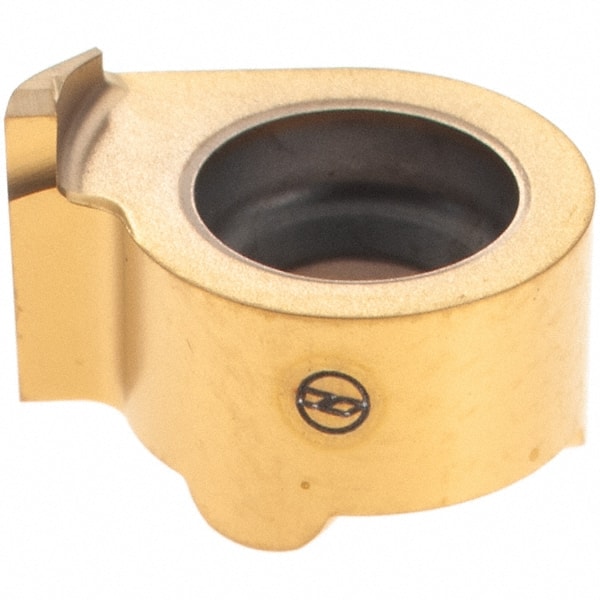

Iscar - 12100005GFQR Grade IC528, 1mm Cutting Width Carbide Grooving Insert - 1.5mm Max Depth of Cut, Right Hand, 0.05mm Corner Radius, TiCN/TiN Finish
Item #: 48777346
Brand: Iscar
Model #: 6403052
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GFQR |
| Insert Size | 12100005 |
| Material | Carbide |
| Cutting Width (mm) | 1.00 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Manufacturer's Grade | IC528 |
| Coating | TiCN/TiN |
| Insert Hand | Right Hand |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.05 |
| Corner Radius (Decimal Inch) | 0.0020 |
| Coating Process | PVD |
| Overall Length (mm) | 9.00 |
| Overall Length (Decimal Inch) | 0.3543 |
| Series | ChamGroove |
| Overall Width (mm) | 1.00 |
| Overall Width (Decimal Inch) | 0.0394 |
