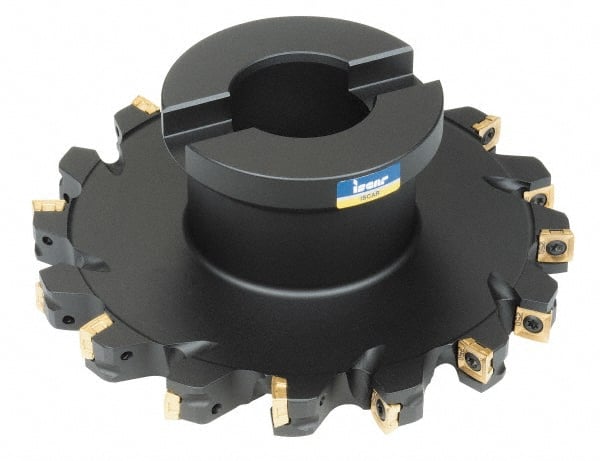

Iscar - Shell Mount B Connection, 0.51" Cutting Width, 1.68" Depth of Cut, 6" Cutter Diam, 1-1/2" Hole Diam, 12 Tooth Indexable Slotting Cutter - FDN Toolholder, QDMT 1205PDTN-HQ Insert
Item #: 48777387
Brand: Iscar
Model #: 3100875
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount B |
| Cutting Width (Decimal Inch) | 0.5100 |
| Maximum Depth of Cut (Decimal Inch) | 1.6800 |
| Cutter Diameter (Decimal Inch) | 6.0000 |
| Cutter Diameter (Inch) | 6 |
| Hole Diameter (Inch) | 1-1/2 |
| Hole Diameter (Decimal Inch) | 1.5000 |
| Number of Teeth | 12 |
| Toolholder Style | FDN |
| Series | Heliquad(FDN) |
| Insert Style | QDMT 1205PDTN-HQ |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.5100 |
| Maximum Cutting Width (Decimal Inch) | 0.5100 |
| Hub Diameter (Decimal Inch) | 3.1500 |
| Radius | No |
