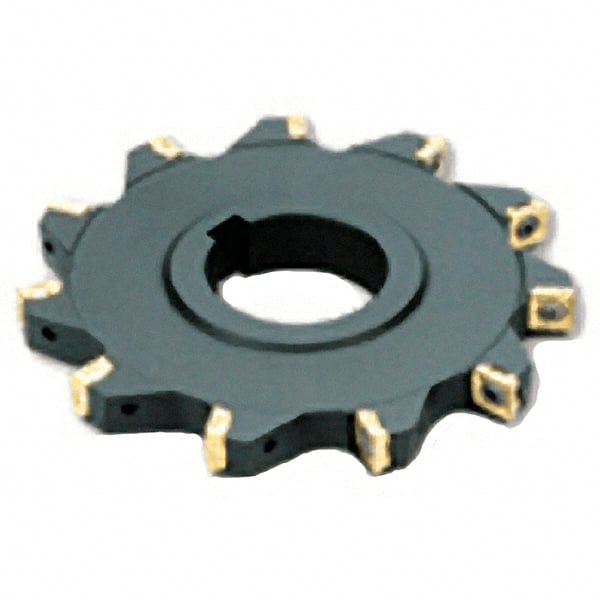

Iscar - Arbor Hole Connection, 0.3543" Cutting Width, 1.0236" Depth of Cut, 100mm Cutter Diam, 1.2598" Hole Diam, 9 Tooth Indexable Slotting Cutter - SSB Toolholder, S/Q/XPMT Insert
Item #: 48777528
Brand: Iscar
Model #: 3100897
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (mm) | 9.00 |
| Cutting Width (Decimal Inch) | 0.3543 |
| Maximum Depth of Cut (mm) | 26.00 |
| Maximum Depth of Cut (Decimal Inch) | 1.0236 |
| Cutter Diameter (mm) | 100.00 |
| Cutter Diameter (Decimal Inch) | 3.9370 |
| Hole Diameter (mm) | 32.00 |
| Hole Diameter (Decimal Inch) | 1.2598 |
| Number of Teeth | 9 |
| Toolholder Style | SSB |
| Series | IscarMill(SSB) |
| Insert Style | S/Q/XPMT |
| Staggered Tooth | No |
| Hub Diameter (mm) | 47.00 |
| Hub Diameter (Decimal Inch) | 1.8504 |
