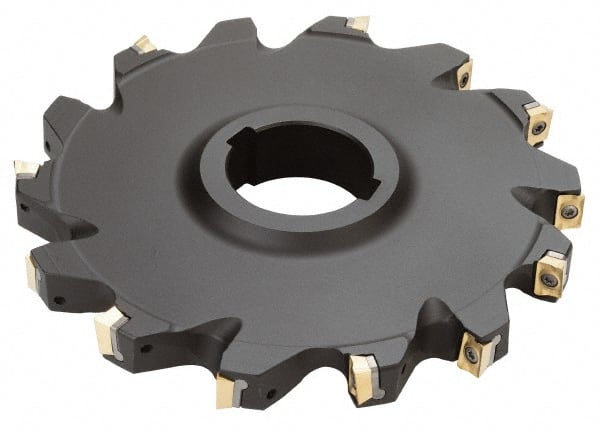

Iscar - Arbor Hole Connection, 3/4" Cutting Width, 2.43" Depth of Cut, 8" Cutter Diam, 2" Hole Diam, 14 Tooth Indexable Slotting Cutter - SDN Toolholder, QDMT 1205PDTN-HQ Insert
Item #: 48777791
Brand: Iscar
Model #: 3101217
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.7500 |
| Cutting Width (Inch) | 3/4 |
| Maximum Depth of Cut (Decimal Inch) | 2.4300 |
| Cutter Diameter (Decimal Inch) | 8.0000 |
| Cutter Diameter (Inch) | 8 |
| Hole Diameter (Inch) | 2 |
| Hole Diameter (Decimal Inch) | 2.0000 |
| Number of Teeth | 14 |
| Toolholder Style | SDN |
| Series | Heliquad(SDN) |
| Insert Style | QDMT 1205PDTN-HQ |
| Number of Cutter Inserts | 14 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.7500 |
| Maximum Cutting Width (Decimal Inch) | 0.7500 |
| Hub Diameter (Decimal Inch) | 3.0000 |
| Radius | No |
| Cutter Body Width (Decimal Inch) | 0.8750 |
