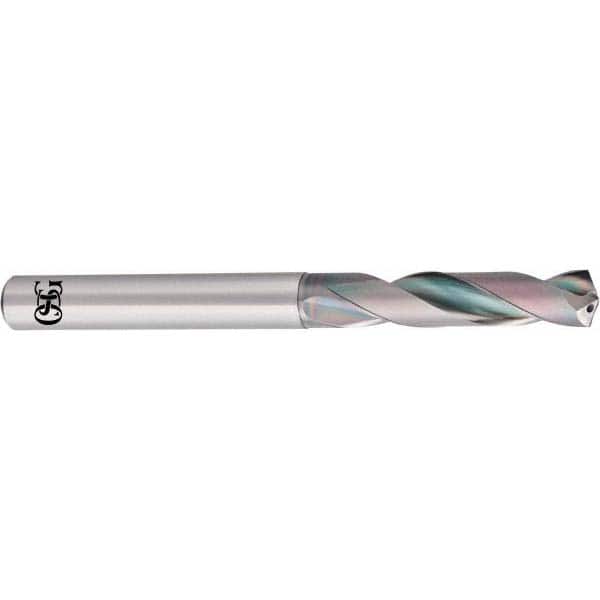

Screw Machine Length Drill Bit: 0.7283″ Dia, 140 °, Solid Carbide EgiAs Finish, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series 6500
Item #: 48819841
Brand: OSG
Model #: 8691850
Product Specifications
| Drill Bit Size (mm) | 18.50 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | EgiAs |
| Drill Point Angle | 140 |
| Flute Type | Spiral |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7480 |
| Drill Bit Size (Decimal Inch) | 0.7283 |
| Overall Length (mm) | 160.00 |
| Overall Length (Decimal Inch) | 6.2992 |
| Shank Diameter (mm) | 19.00 |
| Series | 6500 |
| Web Thinning | X-Thinned |
| Drill Length Type | Stub |
| Flute Length (mm) | 93.00 |
| Drill Bit Size Range (Decimal Inch) | 0.6000+ |
| Drill Bit Size Range (mm) | 17.00+ |
