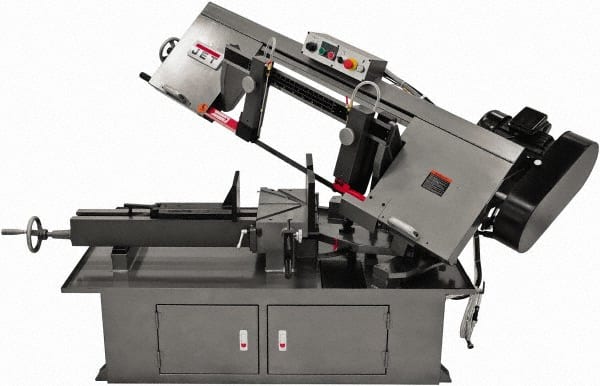

Jet - 10 x 17" Max Capacity, Manual Step Pulley Horizontal Bandsaw - 50, 125, 200 & 275 SFPM Blade Speed, 230/460 Volts, 60°, 2 hp, 3 Phase
Item #: 48837041
Brand: Jet
Model #: 413410
Exact Tooling IR#: 04
Features and Benefits
Manual bandsaws are controlled by an operator. They manually load the material into the saw, measure lengths to cut and adjust stops.
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. These pulleys commonly feature 3 to 4 fixed speeds.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Machine Style | Manual |
| Drive Type | Step Pulley |
| Angle of Rotation | 60 |
| Maximum Capacity (Rectangular) (Inch) | 10 x 17 |
| Maximum Capacity (Rounds) (Inch) | 10 |
| Phase | 3 |
| Voltage | 230/460 |
| Coolant System | Yes |
| Angular Cuts at 45 Degrees (Inch) | 10 x 12 (Rectangular) |
| Blade Width (Decimal Inch) | 1.0000 |
| Angular Cuts at 60 Degrees (Inch) | 5-1/2 (Square) |
| Blade Speeds (SFPM) | 50; 125; 200; 275 |
| Blade Speeds (m/min) | 15.24; 38.1; 60.96; 83.82 |
| Blade Length (Feet) | 12.00 |
| Blade Thickness (Decimal Inch) | 0.0320 |
| Blade Guide Type | Bearings |
| Blade Speeds (SFPM) | 50, 125, 200, 275 |
| Horsepower (HP) | 2.00 |
| Base Width (Inch) | 36 |
| Base Depth (Inch) | 79 |
| Certification | CSA/CUS |
| Warranty | 2 Year |
