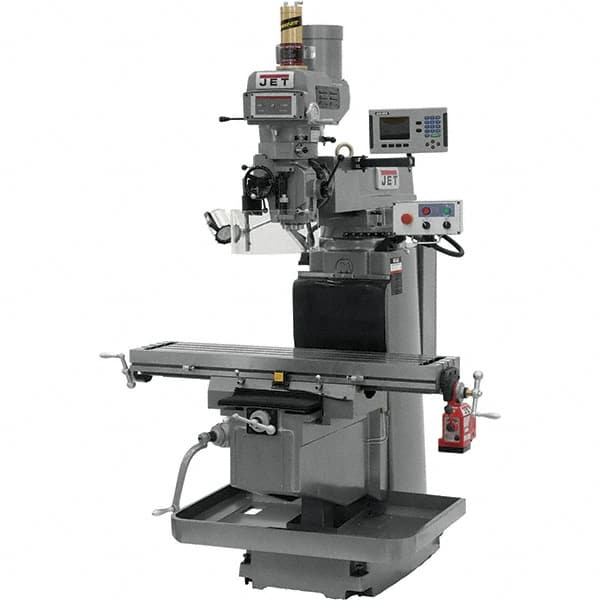

Jet - 54" Long x 12" Wide, 3 Phase Acu-Rite 200S CNC Milling Machine - Variable Speed Pulley Control, NT40 Taper, 5 hp
Item #: 48839476
Brand: Jet
Model #: 698050
Exact Tooling IR#: 04
Features and Benefits
Variable speed pulleys are driven by a V-shaped belt system and a variable speed assembly that regulates an infinite speed range change by the turn of a dial.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as it reaches its voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Variable Speed Pulley |
| CNC Controller Brand | Acu-Rite |
| CNC Controller Model | 200S |
| Table Length (Inch) | 54 |
| Table Width (Inch) | 12 |
| Phase | 3 |
| Longitudinal Travel (Inch) | 28-1/4 |
| Cross Travel (Decimal Inch) | 13.3333 |
| Knee Travel (Inch) | 19-1/4 |
| Maximum Spindle Speed (RPM) | 3800.00 |
| Minimum Spindle Speed (RPM) | 80.00 |
| Spindle Travel Length (Inch) | 5 |
| Spindle Taper Size | NT40 |
| Quill Diameter (Decimal Inch) | 4.1300 |
| Maximum Spindle To Column Distance (Decimal Inch) | 26.5000 |
| Table Load Capacity (Lb.) | 925.00 |
| Number of T-Slots | 3 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Horsepower (HP) | 5.00 |
| Voltage | 230/460 |
| Overall Length (Inch) | 104-1/4 |
| Overall Height (Inch) | 92-1/8 |
| Overall Depth (Inch) | 79-7/8 |
| Certification | CSA/CUS |
| Warranty | 2 Year |
