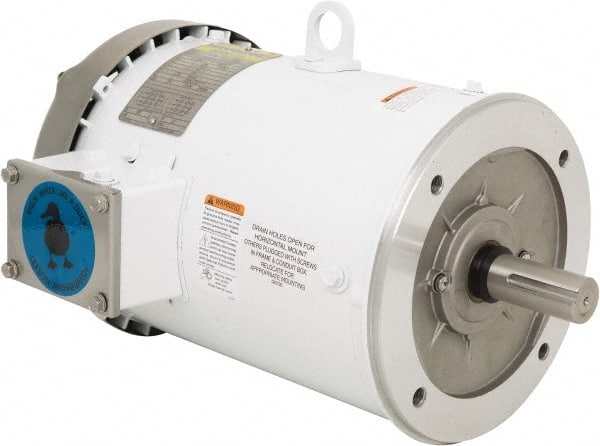

Leeson - 5 Max hp, 1,800 Max RPM, Premium Efficient Electric AC DC Motor - 230/460 V Input, Three Phase, 184TC Frame, C-Face Mount, TEFC Enclosure
Item #: 48862395
Brand: Leeson
Model #: 132440.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Premium Efficient |
| Type of Enclosure | TEFC |
| Maximum HorsePower | 5 |
| Minimum Horsepower | 5 |
| Phase | Three |
| Input Voltage | 230/460 |
| Frame Size | 184TC |
| Full Load Amperage | 12.6 |
| Mount Type | C-Face |
| Service Factor Rating | 1.15 |
| Frame Material | Steel |
| Applications | Washdown |
| Maximum RPM | 1800 |
| PSC Code | 6105 |
