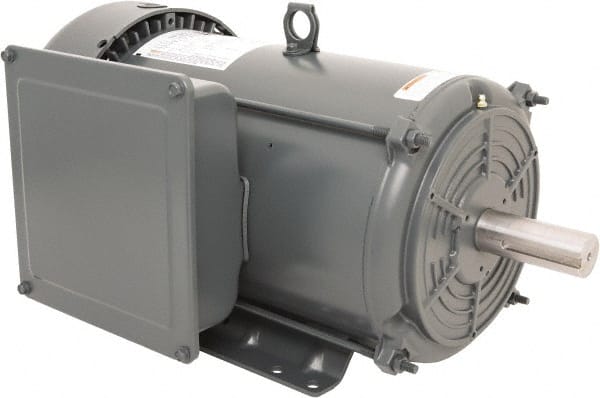

Leeson - 10 Max hp, 1,800 Max RPM, Capacitor Start Electric AC DC Motor - 230 V Input, Single Phase, 215T Frame, Rigid Base Mount, TEFC Enclosure
Item #: 48862593
Brand: Leeson
Model #: LM24722
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Capacitor Start |
| Type of Enclosure | TEFC |
| Maximum HorsePower | 10 |
| Minimum Horsepower | 10 |
| Phase | Single |
| Input Voltage | 230 |
| Frame Size | 215T |
| Full Load Amperage | 41.5 |
| Mount Type | Rigid Base |
| Service Factor Rating | 1.00 |
| Frame Material | Steel |
| Applications | General Purpose |
| Maximum RPM | 1800 |
| PSC Code | 6105 |
