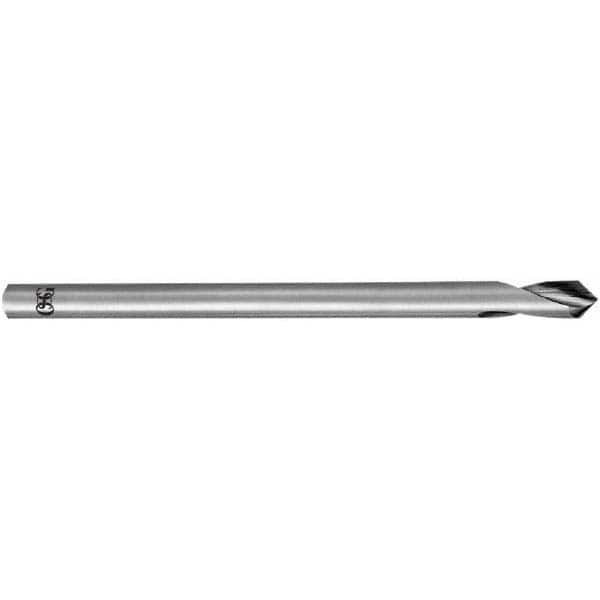

90° 6mm Diam 150mm OAL 2-Flute High Speed Steel Spotting Drill Bright/Uncoated, 20mm Flute Length, 6mm Shank Diam, RH Cut, Series 1250
Item #: 48886782
Brand: OSG
Model #: 63506
Product Specifications
| Drill Point Angle | 90 |
| Cutting Diameter (mm) | 6.00 |
| Cutting Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 150.00 |
| Tool Material | High Speed Steel |
| Coating/Finish | Bright/Uncoated |
| Single/Double Ended | Single |
| Series | 1250 |
| Overall Length (Decimal Inch) | 5.9055 |
| Flute Length (Decimal Inch) | 0.7874 |
| Flute Length (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Shank Diameter (mm) | 6.00 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Helix Angle | 20 |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
