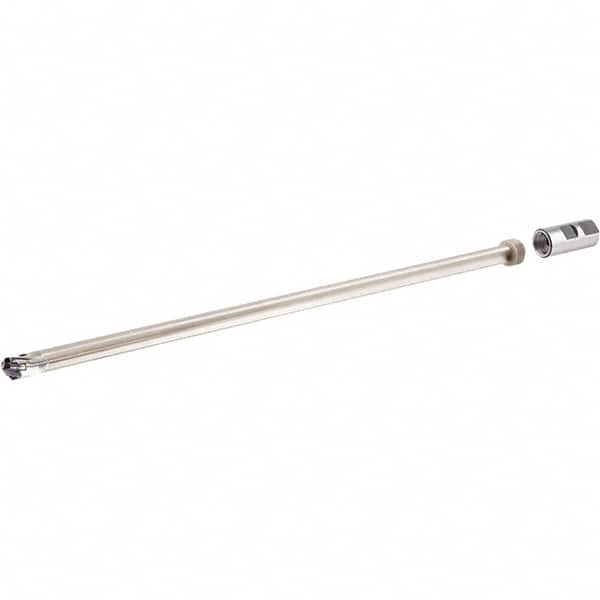

Iscar - 0.945 to 0.984" Diam, 31.67" Max Drill Depth, 0.866" Shank Diam, 33.779" OAL, Replaceable Tip Drill - HCP-IQ, ICG, ICK, ICK-2M, ICM, ICP, iCP-2M, QCP-2M Insert, 24 Seat Size, MNCNT Toolholder, Series SumoGun
Item #: 48956833
Brand: Iscar
Model #: 3260238
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | SumoGun |
| Minimum Drill Diameter (Decimal Inch) | 0.9450 |
| Maximum Drill Diameter (Decimal Inch) | 0.9840 |
| Maximum Drill Depth (Decimal Inch) | 31.6700 |
| Shank Diameter (Decimal Inch) | 0.8660 |
| Insert Style | HCP-IQ; ICG; ICK; ICK-2M; ICM; ICP; iCP-2M; QCP-2M |
| Insert Seat Size | 24 |
| Toolholder Style | MNCNT |
| Tip Length (Decimal Inch) | 0.1720 |
| Flute Length (mm) | 31.67 |
| Body Length (mm) | 33.23 |
| Overall Length (Decimal Inch) | 33.7790 |
| Shank Length (Decimal Inch) | 0.5510 |
