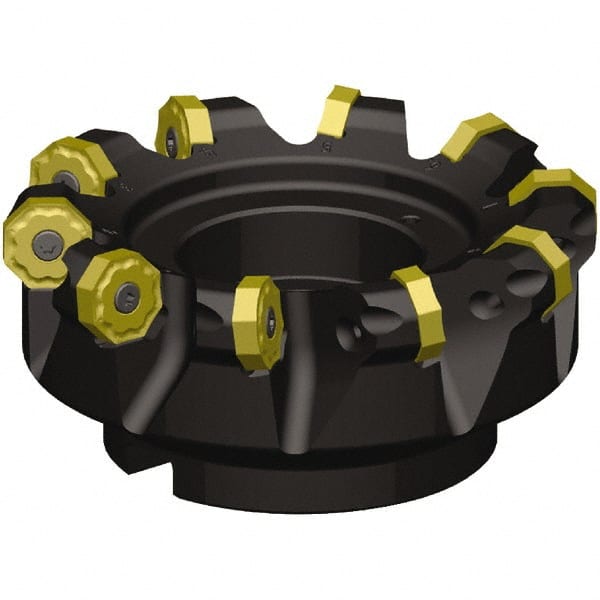

Kennametal - 250.01mm Cut Diam, 60mm Arbor Hole, 5.5mm Max Depth of Cut, 46.5° Indexable Chamfer & Angle Face Mill - 16 Inserts, ON.X080608.. Insert, Right Hand Cut, 16 Flutes, Series MILL 16
Item #: 49081706
Brand: Kennametal
Model #: 6159068
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 250.01 |
| Cutting Diameter (Decimal Inch) | 9.8430 |
| Arbor Hole Diameter (mm) | 60.00 |
| Arbor Hole Diameter (Decimal Inch) | 2.3600 |
| Lead Angle | 46.5 |
| Overall Height (mm) | 63.03 |
| Insert Compatibility | ON.X080608.. |
| Series | MILL 16 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 5.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.2200 |
| Number of Cutter Inserts | 16 |
| Number of Flutes | 16 |
| Hub Diameter (mm) | 130.00 |
| Maximum RPM | 5300 |
| Cutting Direction | Right Hand |
| Toolholder Material | Steel |
| Overall Length (mm) | 63.03 |
| Maximum RPM | 5300 |
| Maximum Cutting Diameter (mm) | 262.00 |
