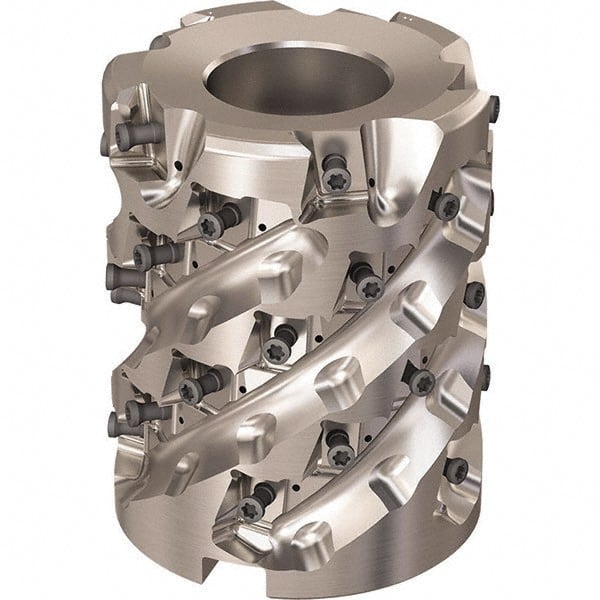

Seco - 35 Inserts, 3" Cut Diam, 1-1/4" Arbor Diam, 81mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 95mm High, LOEX-12 Insert Compatibility, Through Coolant, Series R220.94
Item #: 49094345
Brand: Seco
Model #: 29526
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 76.20 |
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Inch) | 1-1/4 |
| Lead Angle | 90 |
| Overall Height (mm) | 95.00 |
| Insert Compatibility | LOEX-12 |
| Series | R220.94 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 81.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 35 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Hub Diameter (mm) | 72.90 |
| Keyway Width (mm) | 12.90 |
| Keyway Depth (mm) | 7.30 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 8000 |
| Toolholder Material | Steel |
