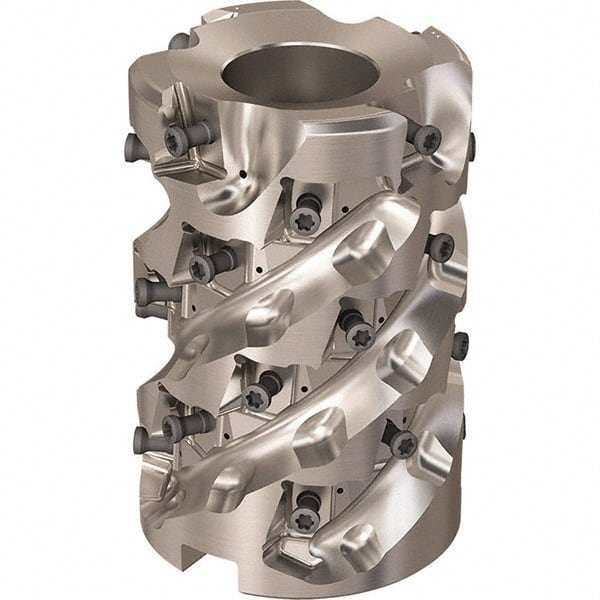

Seco - 28 Inserts, 63mm Cut Diam, 27mm Arbor Diam, 81mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 93mm High, LOEX-12 Insert Compatibility, Through Coolant, Series R220.94
Item #: 49094402
Brand: Seco
Model #: 29318
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 27.00 |
| Lead Angle | 90 |
| Overall Height (mm) | 93.00 |
| Insert Compatibility | LOEX-12 |
| Series | R220.94 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 81.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 28 |
| Insert Holding Method | Screw |
| Number of Flutes | 4 |
| Hub Diameter (mm) | 59.60 |
| Keyway Width (mm) | 12.40 |
| Keyway Depth (mm) | 7 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 8800 |
| Toolholder Material | Steel |
