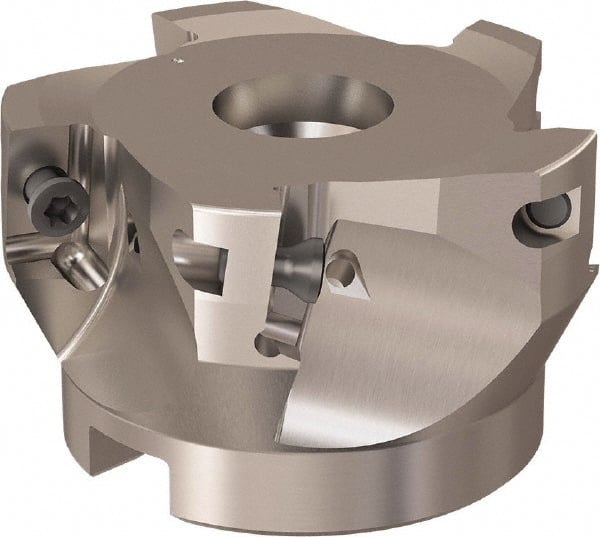

Seco - 5 Inserts, 66mm Cut Diam, 27mm Arbor Diam, 17mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 40mm High, XO.X 12.. Insert Compatibility, Through Coolant, Series R220.69
Item #: 49094535
Brand: Seco
Model #: 44925
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 66.00 |
| Cutting Diameter (Decimal Inch) | 2.5984 |
| Arbor Hole Diameter (mm) | 27.00 |
| Lead Angle | 90 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | XO.X 12.. |
| Series | R220.69 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 17.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Hub Diameter (mm) | 52.00 |
| Keyway Width (mm) | 12.46 |
| Keyway Depth (mm) | 7.11 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 7900 |
| Toolholder Material | Steel |
