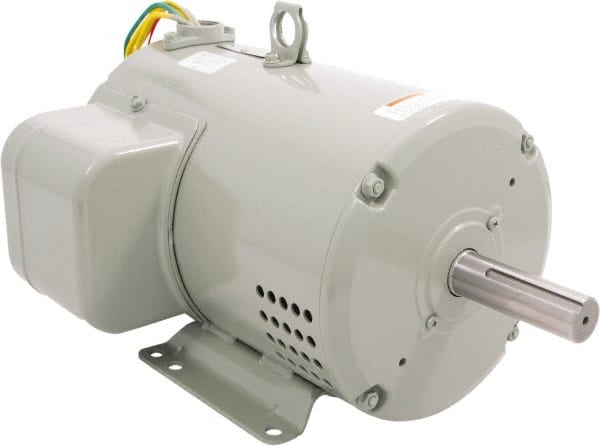

Leeson - 7 Max hp, 3,600 Max RPM, Crop Dryer Electric AC DC Motor - 230 V Input, Single Phase, 182TZ Frame, 1-1/8" Shaft Diam, Rigid Base Mount, DPAO Enclosure
Item #: 49140098
Brand: Leeson
Model #: 131847.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Crop Dryer |
| Type of Enclosure | DPAO |
| Maximum HorsePower | 7 |
| Minimum Horsepower | 5 |
| Name Plate RPMs | 3450 |
| Phase | Single |
| Input Voltage | 230 |
| Frame Size | 182TZ |
| Full Load Amperage | 27.2-35 |
| Mount Type | Rigid Base |
| Bearing Type | Double Sealed Ball Bearings |
| Shaft Diameter (Decimal Inch) | 1.1250 |
| Service Factor Rating | 1.00 |
| Frame Material | Steel |
| Insulation Class | F |
| Applications | Agriculture |
| Maximum RPM | 3600 |
| PSC Code | 6105 |
