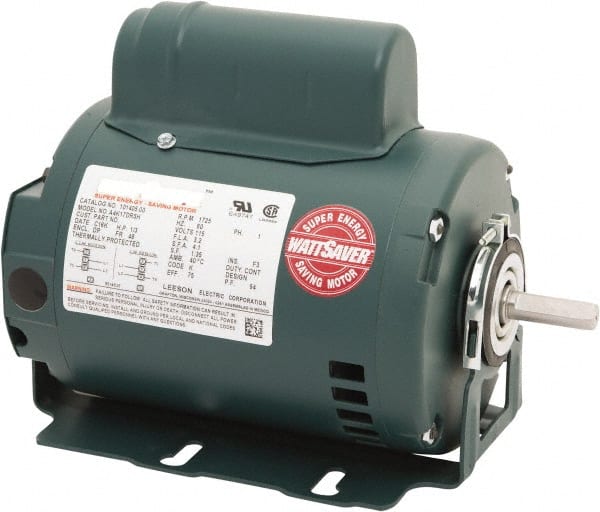

Leeson - 1/3 Max hp, 1,800 Max RPM, Premium Efficient Electric AC DC Motor - 115 V Input, Single Phase, 48 Frame, 1/2" Shaft Diam, Resilient Base Mount, ODP Enclosure
Item #: 49140114
Brand: Leeson
Model #: 101405.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Premium Efficient |
| Type of Enclosure | ODP |
| Maximum HorsePower | 1/3 |
| Minimum Horsepower | 0.333 |
| Name Plate RPMs | 1725 |
| Phase | Single |
| Input Voltage | 115 |
| Frame Size | 48 |
| Full Load Amperage | 3.2 |
| Mount Type | Resilient Base |
| Bearing Type | Shielded Ball Bearings |
| Shaft Diameter (Decimal Inch) | 0.5000 |
| Service Factor Rating | 1.35 |
| Frame Material | Steel |
| Insulation Class | F |
| Applications | Fan |
| Maximum RPM | 1800 |
| PSC Code | 6105 |
