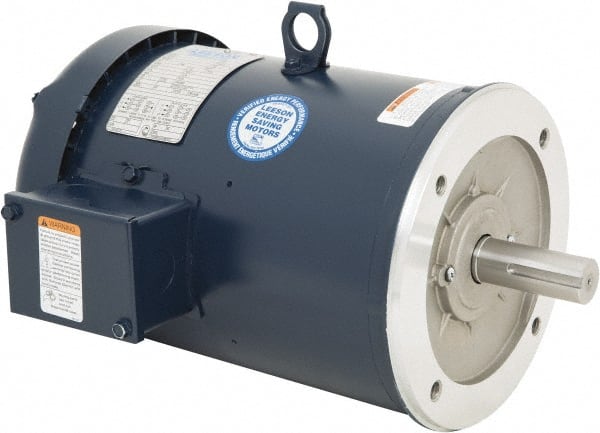

Leeson - 5 Max hp, 1,800 Max RPM, Premium Efficient Electric AC DC Motor - 230/460 V Input, Three Phase, 184TC Frame, 1-1/8" Shaft Diam, C-Face Mount, TEFC Enclosure
Item #: 49140122
Brand: Leeson
Model #: 131501.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Premium Efficient |
| Type of Enclosure | TEFC |
| Maximum HorsePower | 5 |
| Minimum Horsepower | 5 |
| Name Plate RPMs | 1760 |
| Phase | Three |
| Input Voltage | 230/460 |
| Frame Size | 184TC |
| Full Load Amperage | 12.8 |
| Mount Type | C-Face |
| Bearing Type | Double Shielded Ball |
| Shaft Diameter (Decimal Inch) | 1.1250 |
| Service Factor Rating | 1 |
| Frame Material | Steel |
| Insulation Class | F |
| Applications | General Purpose |
| Maximum RPM | 1800 |
| PSC Code | 6105 |
