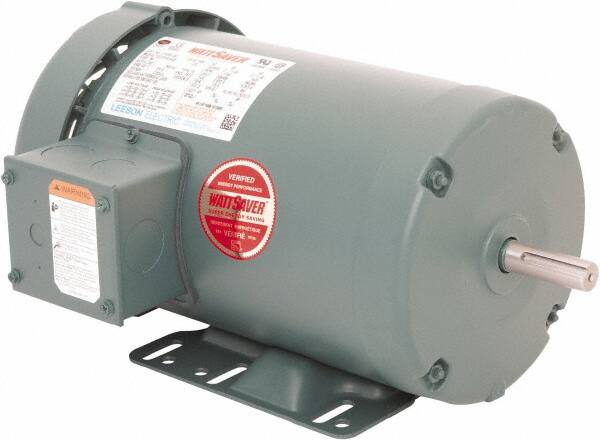

Leeson - 2 Max hp, 1,800 Max RPM, Premium Efficient Electric AC DC Motor - 230/460 V Input, Three Phase, 56H Frame, 5/8" Shaft Diam, Rigid Base Mount, TEFC Enclosure
Item #: 49140163
Brand: Leeson
Model #: 116761.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Premium Efficient |
| Type of Enclosure | TEFC |
| Maximum HorsePower | 2 |
| Minimum Horsepower | 2 |
| Name Plate RPMs | 1745 |
| Phase | Three |
| Input Voltage | 230/460 |
| Frame Size | 56H |
| Full Load Amperage | 5.8 |
| Mount Type | Rigid Base |
| Bearing Type | Double Shielded Ball |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Service Factor Rating | 1 |
| Frame Material | Steel |
| Insulation Class | F |
| Applications | General Purpose |
| Maximum RPM | 1800 |
| PSC Code | 6105 |
