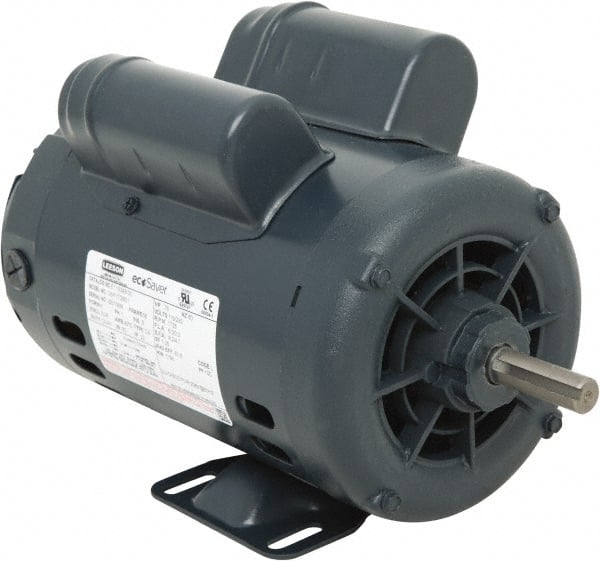

Leeson - 3/4 Max hp, 1,800 Max RPM, Premium Efficient Electric AC DC Motor - 115/230 V Input, Single Phase, 56 Frame, 5/8" Shaft Diam, Rigid Base Mount, ODP Enclosure
Item #: 49140247
Brand: Leeson
Model #: E119348.00
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Premium Efficient |
| Type of Enclosure | ODP |
| Maximum HorsePower | 3/4 |
| Minimum Horsepower | 3/4 |
| Name Plate RPMs | 1725 |
| Phase | Single |
| Input Voltage | 115/230 |
| Frame Size | 56 |
| Full Load Amperage | 3.3 |
| Mount Type | Rigid Base |
| Bearing Type | Ball Bearing |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Service Factor Rating | 1.25 |
| Frame Material | Steel |
| Insulation Class | B |
| Applications | General Purpose |
| Maximum RPM | 1800 |
| PSC Code | 6105 |
