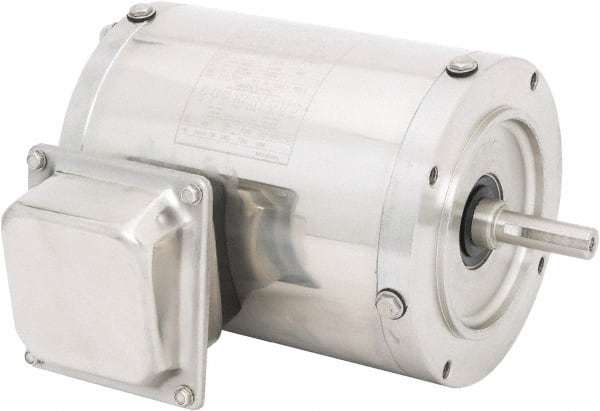

Leeson - 1/2 Max hp, 1,800 Max RPM, Electric AC DC Motor - 230/460 V Input, Three Phase, 56C Frame, 5/8" Shaft Diam, C-Face Mount, TENV Enclosure
Item #: 49140692
Brand: Leeson
Model #: 191205.40
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase |
| Type of Enclosure | TENV |
| Maximum HorsePower | 1/2 |
| Minimum Horsepower | 1/2 |
| Name Plate RPMs | 1740 |
| Phase | Three |
| Input Voltage | 230/460 |
| Frame Size | 56C |
| Full Load Amperage | 1.6 |
| Mount Type | C-Face |
| Bearing Type | Double Shielded Ball |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Service Factor Rating | 1.15 |
| Frame Material | Stainless Steel |
| Insulation Class | F |
| Applications | Washdown |
| Maximum RPM | 1800 |
| PSC Code | 6105 |
