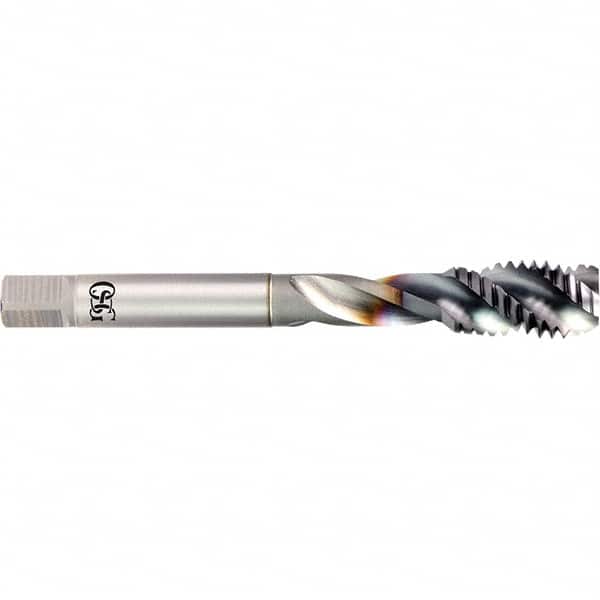

OSG - M6x1.00 Metric Coarse 3 Flute 6H Bottoming Spiral Flute Tap - Powdered Metal, V Finish, 80mm OAL, Right Hand Flute, Right Hand Thread, D5, Series 16500
Item #: 49194194
Brand: OSG
Model #: 1650011008
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
V is a multi-layered TiCN coating that is harder and has greater wear resistance than TiN. It is used for applications in cast iron, steel, stainless steel, nickel alloys and aluminum. V is a proprietary coating exclusive to OSG Tap and Die, Inc.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M6x1.00 |
| Chamfer | Bottoming |
| Class of Fit | 6H |
| Thread Limit | D5 |
| Number of Flutes | 3 |
| Material | Powdered Metal |
| Finish/Coating | V |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (mm) | 80.00 |
| Helix Angle Range | 15 to 45 |
| Thread Standard | Metric Coarse |
| Series/List | 16500 |
| Tapping Depth (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 0.2550 |
