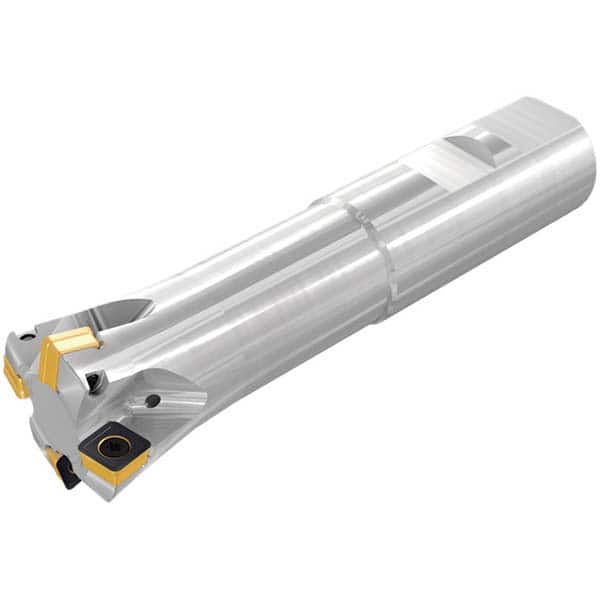

Iscar - Indexable High-Feed End Mills; Cutting Diameter (Inch): 0.9380 ; Cutting Diameter (Decimal Inch): 0.9380 ; Maximum Depth of Cut (mm): 1.20 ; Shank Type: Weldon Flat ; Shank Diameter (Decimal Inch): 1.25 ; Number of Cutter Inserts: 5
Item #: 49207228
Brand: Iscar
Model #: 3323708
Product Specifications
Indexable High-Feed End Mills; Cutting Diameter (Inch): 0.9380 ; Cutting Diameter (Decimal Inch): 0.9380 ; Maximum Depth of Cut (mm): 1.20 ; Shank Type: Weldon Flat ; Shank Diameter (Decimal Inch): 1.25 ; Number of Cutter Inserts: 5
| Cutting Diameter (Inch) | 0.9380 |
| Cutting Diameter (Decimal Inch) | 0.9380 |
| Maximum Depth of Cut (mm) | 1.20 |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 1.25 |
| Number of Cutter Inserts | 5 |
| Insert Style | FFQ4 |
| Toolholder Style | FFQ4 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| End Mill Type | High Feed |
| Number of Flutes | 5 |
| Through Coolant | Coolant Through |
| Head Length (Decimal Inch) | 3.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Overall Length (mm) | 134.60 |
| Toolholder Material | Steel |
