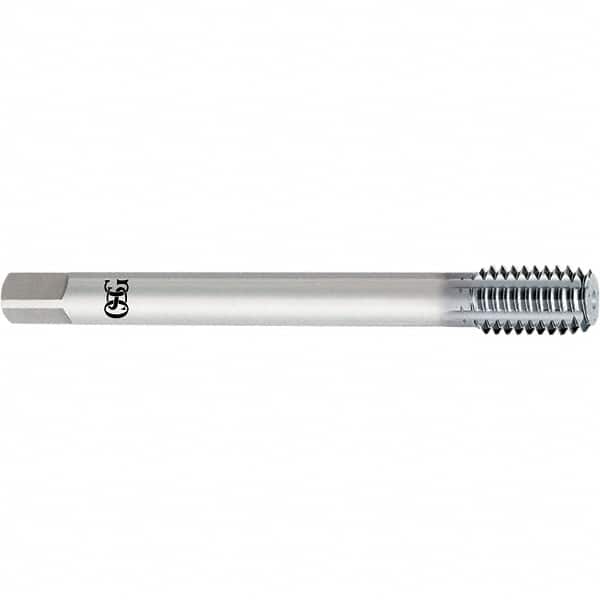

OSG - M36x4.00 Metric 6H D17 Thread Limit Semi-Bottoming Thread Forming Tap - High Speed Steel, V Finish, 200mm OAL, 80mm Thread Length, Right Hand Thread, Series 16350
Item #: 49249550
Brand: OSG
Model #: 1635036411
Exact Tooling IR#: 04
Features and Benefits
Semi-bottoming chamfers are used for blind holes. They have 3 to 3-1/2 threads.
V is a multi-layer TiCN coating, It is commonly used on carbon, mild steels, aluminum castings and cast iron. V is a proprietary coating exclusive to OSG Tap and Die, Inc.
High Speed Steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
| Product Specifications | |
|---|---|
| Thread Size (mm) | M36x4.00 |
| Class of Fit | 6H |
| Thread Limit | D17 |
| Chamfer | Semi-Bottoming |
| Finish/Coating | V |
| Material | High Speed Steel |
| Overall Length (mm) | 200.00 |
| Thread Standard | Metric |
| Thread Length (mm) | 80.00 |
| Series/List | 16350 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 1.2330 |
| Through Coolant | No |
