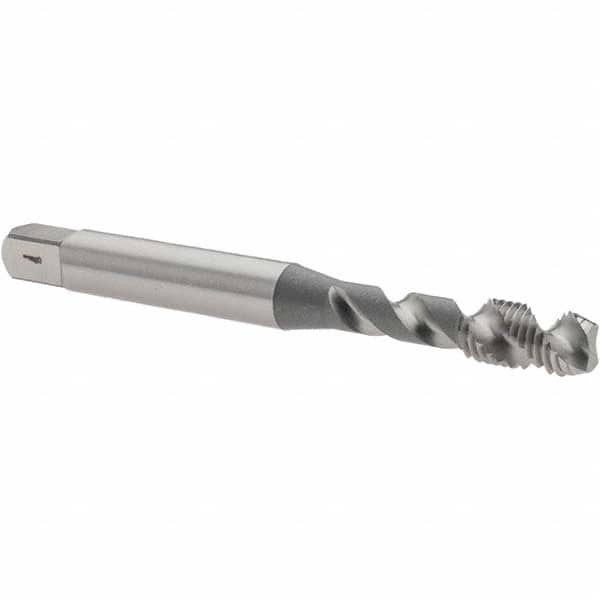

OSG - #10-32 UNF, 3 Flute, 50° Helix, Semi-Bottoming Chamfer, Bright Finish, High Speed Steel Spiral Flute STI Tap - Right Hand Flute, 2-1/2" OAL, 0.255" Shank Diam, 0.311" Thread Length, 3B Class of Fit, Series 13039
Item #: 49265366
Brand: OSG
Model #: 1303900500
Exact Tooling IR#: 04
Features and Benefits
Semi-bottoming chamfers are used for blind holes. They have 3 to 3-1/2 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | #10-32 |
| Class of Fit | 3B |
| Thread Limit | H2 |
| Number of Flutes | 3 |
| Chamfer | Semi-Bottoming |
| Finish/Coating | Bright |
| Overall Length (Inch) | 2-1/2 |
| Helix Angle | 50 |
| Thread Standard | UNF |
| Material | High Speed Steel |
| Flute Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.3110 |
| Series/List | 13039 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Material Application | Aluminum |
