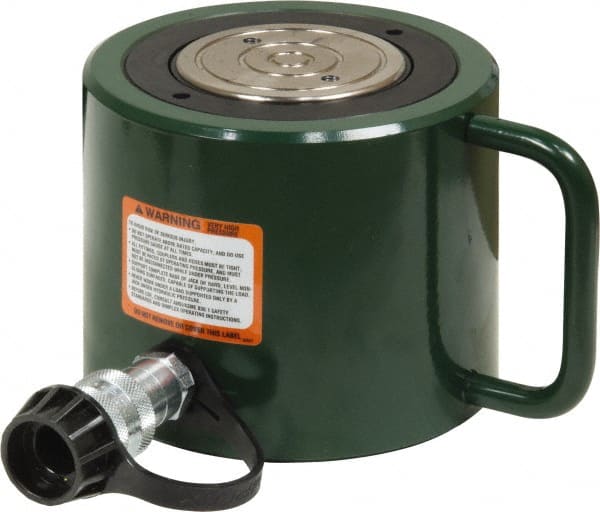

TK Simplex - 2-1/4" Stroke, 100 Ton Portable Hydraulic Low Profile Cylinder - 19.63 Sq In Effective Area, 44.2 Cu In Oil Capacity, 5.56 to 7.81" High, 3-5/8" Plunger Diam, 10,000 Max psi
Item #: 49268113
Brand: TK Simplex
Model #: RLS1002
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Low Profile |
| Load Capacity (Ton) | 100 |
| Piston Stroke (Decimal Inch) | 2.25 |
| Lowered Height | 5.56 |
| Oil Capacity | 44.20 |
| Effective Area | 19.63 |
| Maximum Height (Decimal Inch) | 7.81 |
| Outside Diameter (Inch) | 6-1/2 |
| Plunger Diameter | 3.62 |
| Base To Inlet Port (Inch) | 1-1/4 |
| Maximum Pressure (psi) | 10000 |
