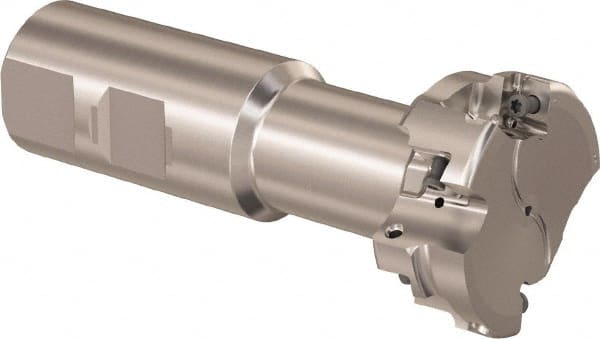

Seco - 46.84mm Cutting Diam 20.9mm Cutting Width, 6 Cutter Inserts, 1-1/4" Shank Diam, Indexable T-Slot Cutter - Insert Style LNK. 08.., 130mm OAL, 2 Flutes
Item #: 49328651
Brand: Seco
Model #: 51600
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 46.84 |
| Cutting Diameter (Decimal Inch) | 1.8441 |
| T-Slot Bolt Size (Inch) | 1 |
| Cutting Width (mm) | 20.90 |
| Shank Diameter (Inch) | 1-1/4 |
| Toolholder Style | R335.16 |
| Number of Cutter Inserts | 6 |
| Insert Style | LNK. 08.. |
| Staggered Tooth | Yes |
| Number of Flutes | 2 |
| Neck Diameter (Decimal Inch) | 1.0000 |
| Neck Length (Decimal Inch) | 1.4408 |
| Shank Length (mm) | 68.50 |
| Overall Length (mm) | 130.00 |
| Maximum Reach (Decimal Inch) | 2.2636 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Toolholder Material | Steel |
