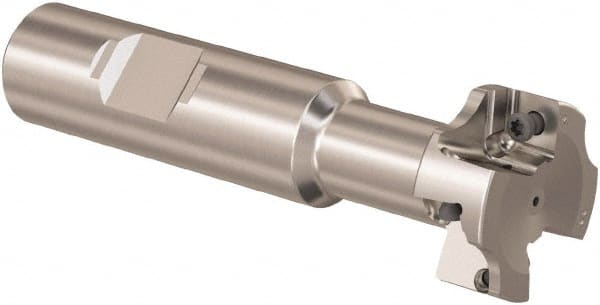

Seco - 24.6mm Cutting Diam 9.83mm Cutting Width, 4 Cutter Inserts, 3/4" Shank Diam, Indexable T-Slot Cutter - Insert Style SPMX 07.., 90mm OAL, 2 Flutes
Item #: 49328693
Brand: Seco
Model #: 51560
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 24.60 |
| Cutting Diameter (Decimal Inch) | 0.9685 |
| T Slot Bolt Size (mm) | 11.50 |
| Cutting Width (mm) | 9.83 |
| Shank Diameter (Inch) | 3/4 |
| Toolholder Style | R335.16 |
| Number of Cutter Inserts | 4 |
| Insert Style | SPMX 07.. |
| Staggered Tooth | Yes |
| Number of Flutes | 2 |
| Neck Diameter (mm) | 11.50 |
| Neck Length (Decimal Inch) | 0.6761 |
| Shank Length (mm) | 58.60 |
| Overall Length (mm) | 90.00 |
| Maximum Reach (Decimal Inch) | 1.0631 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Toolholder Material | Steel |
