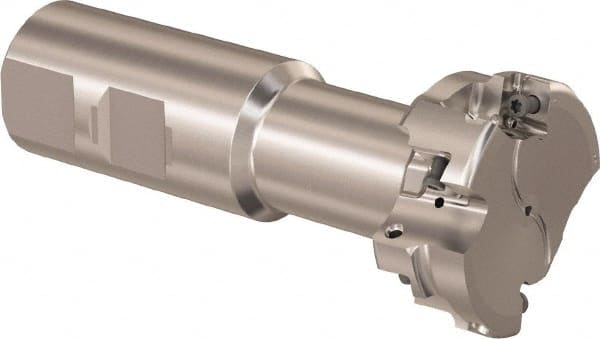

Seco - 50mm Cutting Diam 21mm Cutting Width, 6 Cutter Inserts, 32mm Shank Diam, Indexable T-Slot Cutter - Insert Style LNK. 08.., 120mm OAL, 2 Flutes
Item #: 49328701
Brand: Seco
Model #: 51557
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| T Slot Bolt Size (mm) | 26.00 |
| Cutting Width (mm) | 21.00 |
| Shank Diameter (mm) | 32.00 |
| Toolholder Style | R335.16 |
| Number of Cutter Inserts | 6 |
| Insert Style | LNK. 08.. |
| Staggered Tooth | Yes |
| Number of Flutes | 2 |
| Neck Diameter (mm) | 26.00 |
| Neck Length (Decimal Inch) | 1.3453 |
| Shank Length (mm) | 61.00 |
| Overall Length (mm) | 120.00 |
| Maximum Reach (Decimal Inch) | 2.1721 |
| Insert Holding Method | Screw |
| Weldon Flat | Yes |
| Toolholder Material | Steel |
