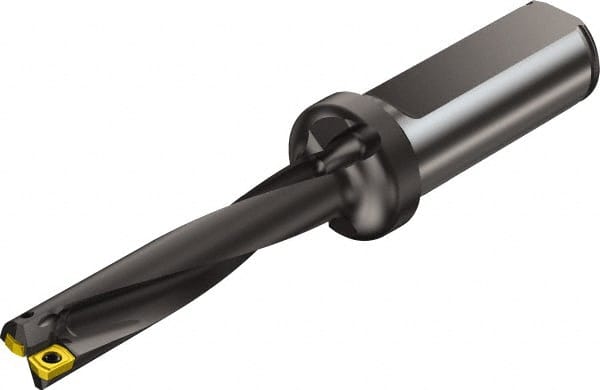

Sandvik Coromant - 98mm Max Drill Depth, 5xD, 19mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Flange Shank
Item #: 49333305
Brand: Sandvik Coromant
Model #: 5765346
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (mm) | 19.00 |
| Drill Diameter (Decimal Inch) | 0.7480 |
| Maximum Drill Depth (mm) | 98.00 |
| Maximum Drill Depth (Decimal Inch) | 3.8583 |
| Shank Type | Flange |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.9843 |
| Maximum Drill Diameter (mm) | 19.60 |
| Overall Length/Projection (mm) | 170.00 |
| Overall Length/Projection (Decimal Inch) | 6.6929 |
| Insert Compatibility | 880-030305H-C-GM; 880-0303W05H-P-GM |
| Flute Length (mm) | 95.00 |
| Flute Length (Decimal Inch) | 3.7402 |
| Body Length (Decimal Inch) | 4.4756 |
| Body Length (mm) | 113.68 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Series | CoroDrill 880 |
| Radial Adjustment (-mm) | 0.30 |
