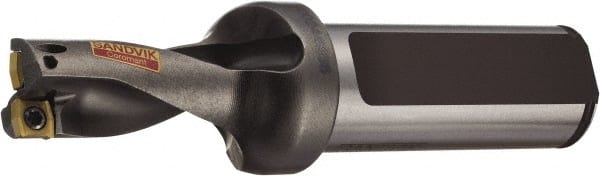

Sandvik Coromant - 1.771" Max Drill Depth, 2xD, 0.812" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Flange Shank
Item #: 49333313
Brand: Sandvik Coromant
Model #: 5962399
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (Decimal Inch) | 0.8120 |
| Maximum Drill Depth (Decimal Inch) | 1.7710 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.8700 |
| Overall Length/Projection (Decimal Inch) | 4.6447 |
| Insert Compatibility | 881-03 03 08M-C-GM1; 881-03 03 08M-P-GM1 |
| Flute Length (Decimal Inch) | 1.6240 |
| Body Length (Decimal Inch) | 2.4114 |
| Shank Length (Decimal Inch) | 2.2333 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 0.74 |
