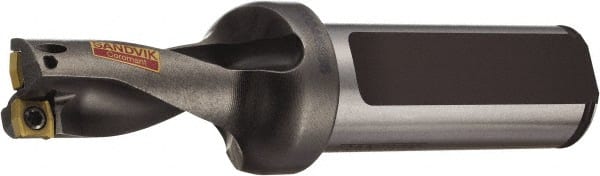

Sandvik Coromant - 1-3/8" Max Drill Depth, 2xD, 5/8" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Flange Shank
Item #: 49333370
Brand: Sandvik Coromant
Model #: 5962375
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | 880 |
| Drill Diameter (Inch) | 5/8 |
| Drill Diameter (Decimal Inch) | 0.6250 |
| Maximum Drill Depth (Decimal Inch) | 1.3750 |
| Maximum Drill Depth (Inch) | 1-3/8 |
| Shank Type | Flange |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.6790 |
| Overall Length/Projection (Decimal Inch) | 3.9335 |
| Insert Compatibility | 881-02 02 04M-C-GM1; 881-02 02 04M-P-GM1 |
| Flute Length (Decimal Inch) | 1.2500 |
| Body Length (Decimal Inch) | 1.9543 |
| Shank Length (Decimal Inch) | 1.9792 |
| Series | CoroDrill 881 |
| Radial Adjustment (-mm) | 0.69 |
